Photos:
Camera Specifications:
2.4GHz Wireless Transmission CCTV Camera
Built in 2.4GHz transmitter and omni-directional antenna
Transmission Power: 10mW/CE; 2mW/FCC
Estimate of 300 ft unobstructed wireless signal distance
Image Type: 1/3 Color SHARP CCD
Horizontal Resolution: 420TV Lines
Effective pixel:NTSC: 510(H)X492(V);PAL:500(H)X582(V)
Usable Illumination: 0Lux (18 IR LED's built in for picture support in the dark)
Free viewing angle: 130°
Waterproof: IP68
Shockproof: 10G
Free Operating Voltage: DC11-32 Volts
Dimensions: 2.9(W) x 1.9(H) x 2.2(D) in (without mount)

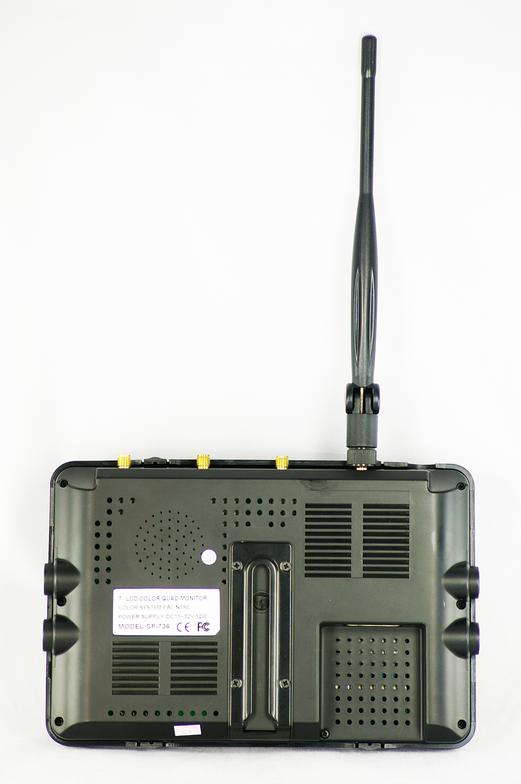

Monitor Specifications:

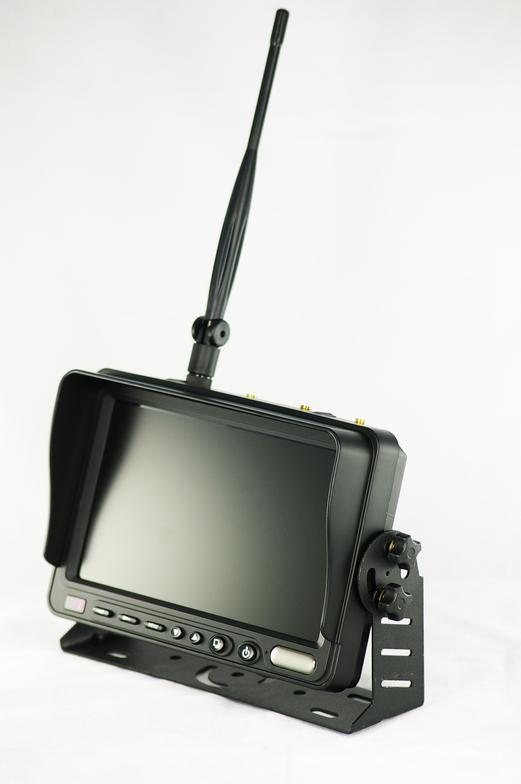

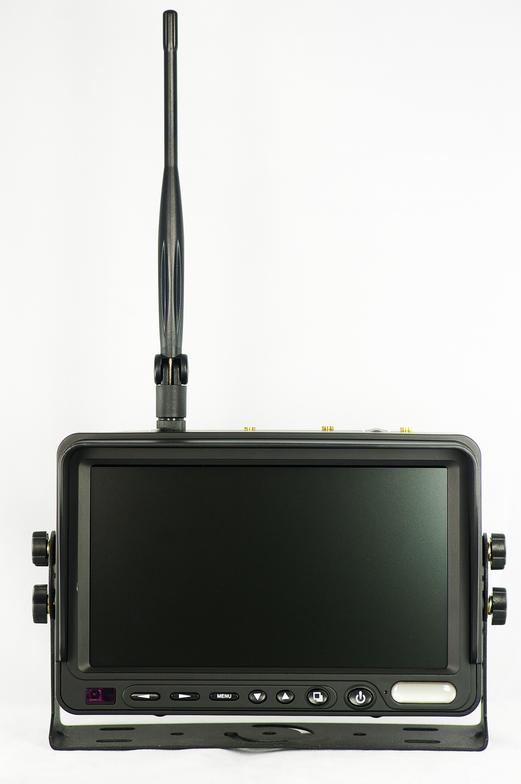

7" Digital Screen Wireless TFT Quad Monitor with Removable Sun Visor
Selectable View: Single/ Split /Quad image view
Built-in 4 Channel 2.4GHz Wireless Receiver
Receiving Sensitivity: ≤-85dB
OSD MENU Separately Set Each Camera Trigger Priority
OSD MENU Separately Set Each Camera Image Delay Time 0-30”
OSD MENU Separately Set Each Camera Mirror/Normal image
Manual and Automatic Switch Display Mode
1 Wiring harness system makes It easy for users to install
Color System: PAL/NTSC (AUTO)
Display Resolution: 2400(H) X 480(V) dot
Wide view angle(CR>10): (up/ down): 45/65 (left/right): 65/65
Brightness (cd/m2): 400 ( Automatically Adjust Environment by According)
Contrast ratio: 500:1
Back-light：Single LED
Operating temperature: -4 F to + 158 F
Storage temperature: -22 F to + 176 F
Free Operating Voltage DC11-32V (1 Cable Solution)
External dimensions:L*W*D (7.2 X 4.9 X 1.8) in (without mount)
Weight Approx: 1.2 lbs

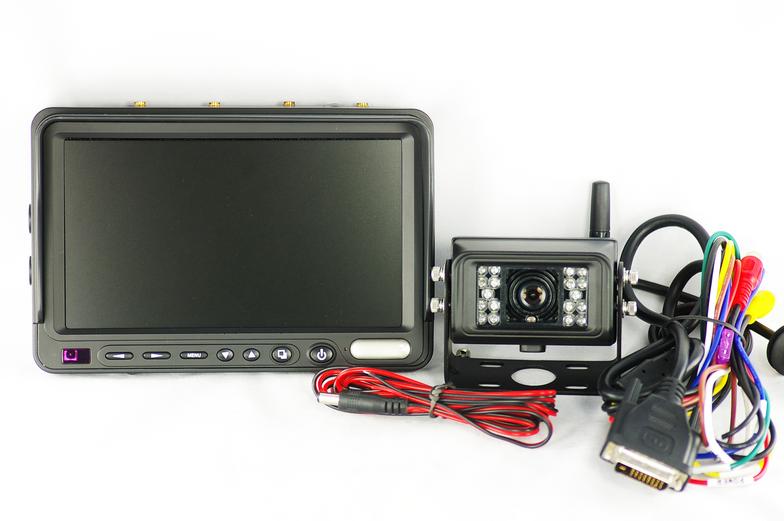

Basic Rock Camera System includes:
1 Rock Camera (optional sun visor)
1 4-Channel monitor (w/ sun visor)
1 Monitor antenna
1 Camera antenna
1 Monitor mount

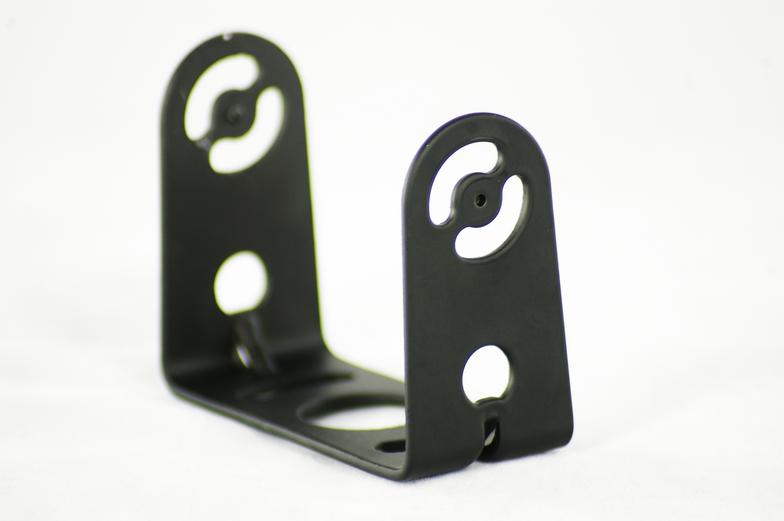

1 Camera mount
Remote control
Wiring harness
Add up to three additional cameras later on.
Basic Rock Camera System (wireless)
